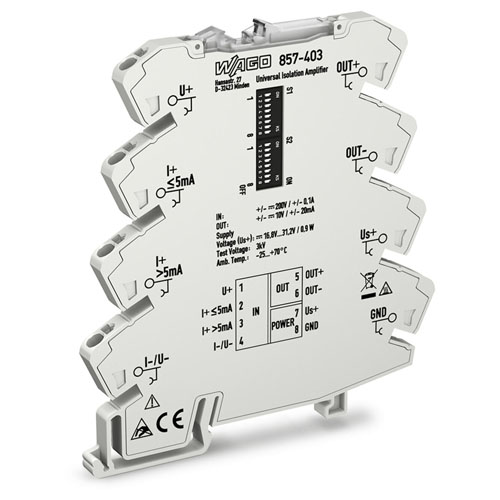

Isolation amplifier

توضیحات

Input voltage:±60,0-60,±100,0-100,±150,0-150,
±300,0-300,±500,0-500 mV
±1,0-1,±5,0-5,1-5,±10,0-10,2-10,±100,0-100,
±200,0-200 V
Input Current:±0.3,0-0.3,±1,0-1,±5,0-5,±10,0-10,2-10,±20,0-20,4-20,±50,0-50,±100,0-100 mA
Output voltage:±5,0-5,1-5,±10,0-10,2-10 V
Output Current:±10, 0-10,2-10,±20,0-20,4-20 mA Current and voltage input signal; Bipolar current and voltage output signal; Configuration via DIP switch; Supply voltage: 24 VDC; 6 mm module width; 2,50 mm²
